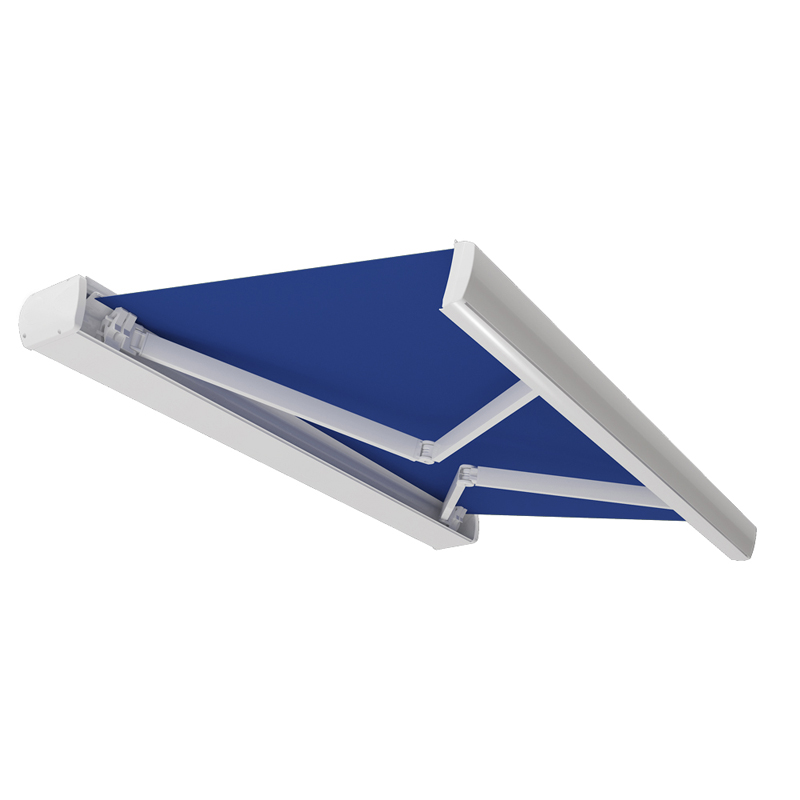

Folding chain arms replace the traditional cable arms. Special mechanism guarantees that full cassette awning will close perfectly. Italian style full cassette design, stylish outer look, providing fabric and awning structure a better protection. It can cover areas of up to 6.0 m in width X 3.0 m in projection and reach 5°~ 7 5°angle adjustment.

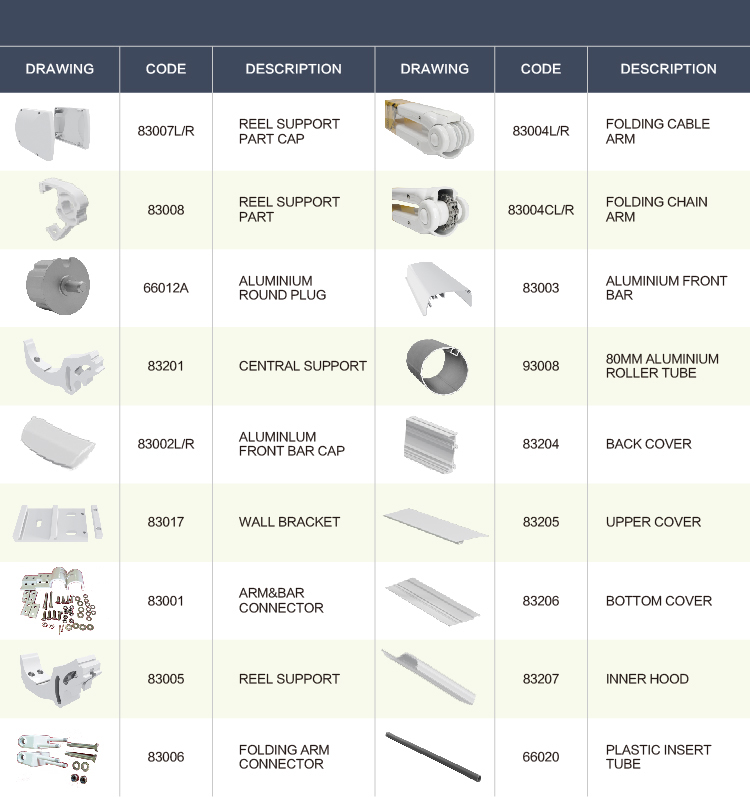

Model Number	A1100 Retractable Awning Components
Roller	70mm Steel
Front bar	Aluminum 148x65mm
Arm	55x26mm/66x32mm
Gear box	1:11
Adjusted-angle	5 to 75
Frame	Outdoor powder coated
Connector	Aluminum die cast
Max size per unit	Width 6.0m,projection 3m
Arms available	1.5m/2.0m/2.5m/3.0m

Application Cases Of Awning Components
